经颅多普勒超声转颈试验阳性9例临床分析并文献复习

doi:10.3969/j.issn.1004-583X.2025.04.010

摘要/Abstract

摘要：

目的探讨经颅多普勒超声(transcranial doppler ultrasound,TCD)转颈试验阳性的血流频谱特点,旨在提高TCD操作医师对旋转性椎动脉闭塞的认识。方法回顾性分析于2023年8月-2024年8月在河北省人民医院神经内科门诊或病房就诊的头晕患者9例,主诉中均提及与头颈部活动相关的头晕症状。分析其临床资料及TCD转颈试验表现。结果 9例患者中,双侧椎动脉受累2例,单侧椎动脉受累7例。共涉及11条椎动脉,左侧受累7条,右侧受累4条,其中3条椎动脉在转颈后血流速度显著增快,其余受累椎动脉在转颈后血流速度明显减低甚至降至基线。其中3例在左侧椎动脉受累的同时,均合并右侧椎动脉纤细或未汇入基底动脉等情况。结论主诉头颈部活动相关的头晕患者,可利用TCD转颈试验进行筛查,能实时观察椎动脉血流动力学改变,为头晕病因的诊断提供线索。

关键词: 椎底动脉供血不足, 旋转性椎动脉闭塞, 经颅多普勒超声, 猎人弓综合征, 转颈试验

Abstract:

Objective To investigate the flow spectral characteristics of a positive transcranial Doppler ultrasound (TCD) neck rotation test, thus improving the understanding of rotational vertebral artery occlusion detected by TCD. Methods Nine patients with dizziness who attended outpatient clinics or admitted in the Department of Neurology in Hebei General Hospital from August 2023 to August 2024 were retrospectively analyzed. Dizziness symptoms related to head and neck movements were described in their chief complaints. Their clinical data and the performance of TCD neck rotation test were analyzed. Results Among the nine patients, two patients had bilateral vertebral artery involvement and seven patients had unilateral vertebral artery involvement. A total of eleven vertebral arteries were involved, including seven on the left side and four on the right side. Three of the vertebral arteries showed a significant increase in blood flow velocity after neck rotation, while the remaining showed a significant decrease in blood flow velocity or even to the baseline after turning the neck. In three cases, the left vertebral artery was involved and the right vertebral artery was thin or did not converge to the basilar artery. Conclusion Patients complaining of dizziness related to head and neck activity can be screened using the TCD neck rotation test, which enables real-time observation of vertebral artery hemodynamic changes and provides clues to the diagnosis of dizziness etiology.

Key words: vertebrobasilar insufficiency, rotational vertebral artery occlusion, transcranial doppler ultrasound, bow hunter's syndrome, neck rotation test

中图分类号:

R743.9

贾砚秋, 霍甜甜, 范鸣玥, 何莎莎, 靳玮, 吕佩源. 经颅多普勒超声转颈试验阳性9例临床分析并文献复习[J]. 临床荟萃, 2025, 40(4): 349-354.

Jia Yanqiu, Huo Tiantian, Fan Mingyue, He Shasha, Jin Wei, Lyu Peiyuan. Clinical analysis of nine cases with positive transcranial Doppler ultrasound neck rotation test and literature review[J]. Clinical Focus, 2025, 40(4): 349-354.

导出引用管理器 EndNote|Ris|BibTeX

链接本文: https://lchc.magtechjournal.com/CN/10.3969/j.issn.1004-583X.2025.04.010

https://lchc.magtechjournal.com/CN/Y2025/V40/I4/349

图/表 3

表1 9例TCD转颈试验阳性临床资料

Tab. 1 Clinical data of nine patients with positive TCD neck rotation test

例序	性别	年龄 (岁)	病例来源	主诉	颈部血管超声	MRA	累及动脉
1	女	44	门诊	间断头晕1周,以转头时明显	未见异常	-	R/LVA
2	男	34	门诊	间断头晕1月,与头部活动有关	-	-	R/LVA
3	女	58	门诊	发作性头晕2月余,与头部活动有关	RVA纤细	BA起源于LICA	LVA
4	男	46	住院	头部活动时头晕1月余	未见异常	RVA纤细,未汇入BA	LVA
5	女	59	门诊	头晕20余天,与头部活动有关	-	-	LVA
6	男	41	门诊	头晕恶心10余天,与头部活动有关	-	-	LVA
7	女	60	住院	头晕耳鸣20余天,头晕似乎与头部活动相关	未见异常	未见异常	RVA
8	男	22	门诊	间断头晕4年,向右侧转头时明显	-	RVA纤细,颅内段未见明确显示	LVA
9	男	30	门诊	转头时头晕1年,加重1周	-	-	RVA

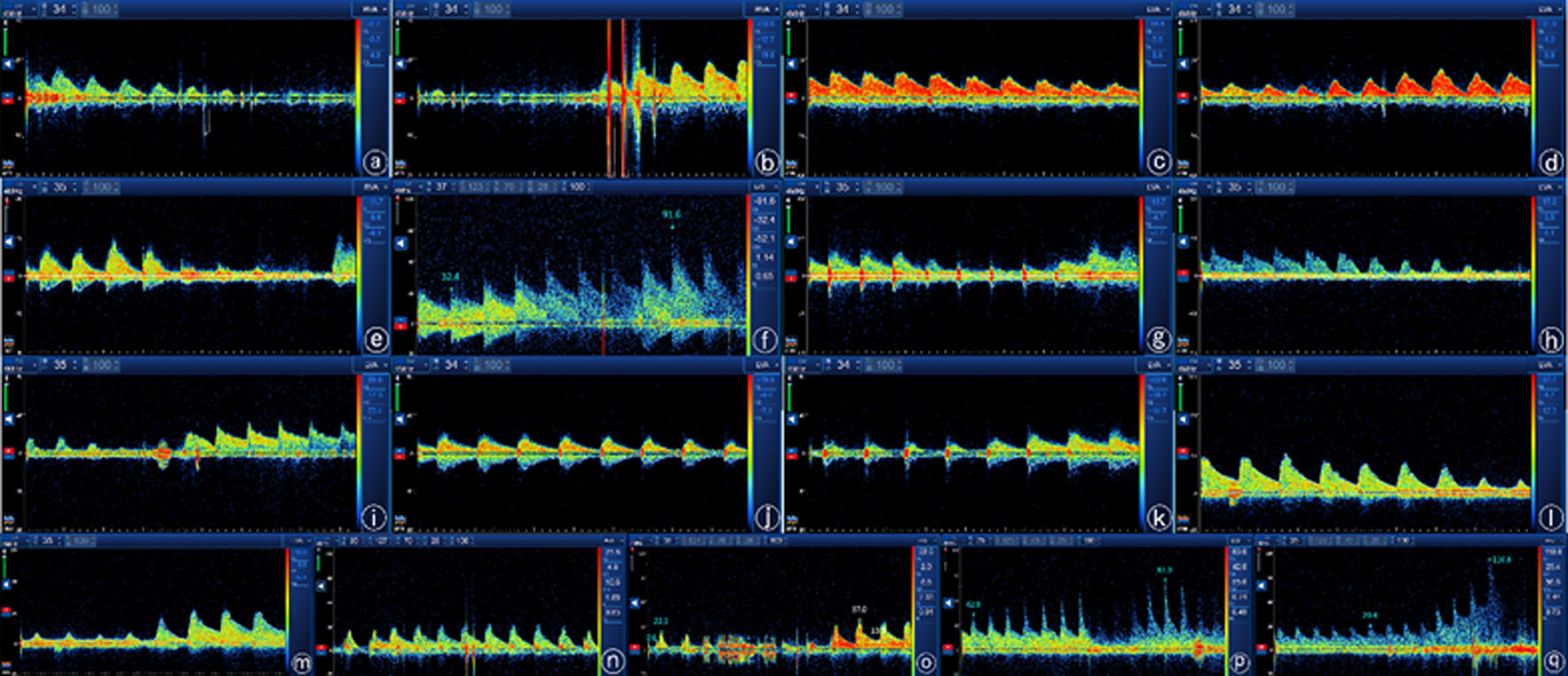

图1 9例TCD转颈试验阳性患者VA频谱 a.病例1:向左侧转颈,RVA3血流速度降至基线; c. 病例1:向右侧转颈,LVA3血流速度明显减低; e. 病例2:向左侧转颈,RVA3血流速度降至基线; f. 病例2:向右侧转颈,LVA3血流速度明显升高; g. 病例3:向右侧转颈,LVA3血流速度明显减低; h. 病例4:向右侧转颈,LVA3血流速度降至基线; j. 病例5:向右侧转颈,LVA3血流速度明显减低; l. 病例6:向右侧转颈,LVA3血流速度明显减低; n. 病例7:向左侧转颈,RVA3血流速度明显减低; p. 病例8:向右侧转颈,LVA3血流速度明显升高; q. 病例9:向左侧转颈,RVA3血流速度明显升高; b、d、e、g、i、k、m、o.体位恢复后血流恢复。

Fig. 1 VA spectra of nine patients with positive TCD neck rotation test a. Case 1: Turning the neck to the left side, RVA3 blood flow velocity decreased to baseline; c. Case 1: Turning the neck to the right, the LVA3 blood flow velocity decreased significantly; e. Case 2: Turning the neck to the left, RVA3 blood flow velocity decreased to baseline; f. Case 2: Turning the neck to the right, the LVA3 blood velocity was significantly elevated; g. Case 3: Turning the neck to the right side, the LVA3 blood flow velocity was significantly reduced; h. Case 4: Turning the neck to the right side, LVA3 blood flow velocity decreased to baseline; j. Case 5: Turning the neck to the right side, LVA3 blood flow velocity was significantly reduced; l. Case 6: Turning the neck to the right side, LVA3 blood flow velocity was significantly reduced; n. Case 7: Turning the neck to the left side, RVA3 blood flow velocity was significantly reduced; p. Case 8: Turning the neck to the right side, the LVA3 blood flow rate was significantly elevated; q. Case 9: Turning the neck to the left side, the RVA3 blood flow rate was significantly elevated; b, d, e, g, i, k, m, o. Blood flow resumed after postural recovery.

表2 9例TCD转颈试验血流速度

Tab. 2 TCD neck rotation test blood flow velocity in nine patients

例序	LVA3转颈试验向右(cm/s)	RVA3转颈试验向左(cm/s)
1	30→10	34→0
2	32→91	46→0
3	29→5	10,探查欠满意
4	44→0	16,转颈无变化
5	22→10	53,转颈无变化
6	45→11	41,转颈无变化
7	40,转颈无变化	37→8
8	42→83	探查不满意
9	34,转颈无变化	29→110

参考文献 52

[1]	Sorensen BF. Bow hunter's stroke[J]. Neurosurgery, 1978, 2(3):259-261. doi: 10.1227/00006123-197805000-00013 pmid: 732978
[2]	Ndongo Sonfack DJ, Bojanowski MW, Tarabay B, et al. Vertebral artery stenosis from osteophyte: A systematic review and case series[J]. Neurochirurgie, 2024, 70(3):101525.
[3]	Cornelius JF, Slotty PJ, Tortora A, et al. Bow hunter's syndrome caused by compression of the subaxial vertebral artery: Surgical technique of anterolateral decompression (video)[J]. World Neurosurg, 2018, 119:358-361. doi: S1878-8750(18)31905-3 pmid: 30165215
[4]	Ng S, Boetto J, Favier V, et al. Bow hunter's syndrome: Surgical vertebral artery decompression guided by dynamic intraoperative angiography[J]. World Neurosurg, 2018, 118:290-295. doi: S1878-8750(18)31630-9 pmid: 30059781
[5]	Cai DZ, Roach RP, Weaver JP, et al. Bow hunter's syndrome in a patient with a right hypoplastic vertebral artery and a dynamically compressible left vertebral artery[J]. Asian J Neurosurg, 2018, 13(1):133-135. doi: 10.4103/1793-5482.181129 pmid: 29492144
[6]	Simpkin CT, Davis KE, Davis BS, et al. Bow hunter's syndrome in a patient with vertebral artery atresia, an arcuate foramen, and unilateral deafness: A case report[J]. Radiol Case Rep, 2017, 12(3):597-601.
[7]	Lukianchikov V, Lvov I, Grin A, et al. Minimally invasive surgical treatment for vertebral artery compression in a patient with one-sided ponticulus posticus and ponticulus lateralis[J]. World Neurosurg, 2018, 117:97-102. doi: S1878-8750(18)31216-6 pmid: 29902609
[8]	Jadeja N, Nalleballe K. Pearls & Oy-sters: Bow hunter syndrome: A rare cause of posterior circulation stroke: Do not look the other way[J]. Neurology, 2018, 91(7):329-331.
[9]	Sakamoto Y, Kimura K, Iguchi Y, et al. An embolic bow hunter's stroke associated with anomaly of cervical spine[J]. Neurology, 2011, 77(14):1403-1404. doi: 10.1212/WNL.0b013e31823152f9 pmid: 21968846
[10]	Fujii M, Ohgushi M, Chin T. Brain infarction due to vertebral artery dissection caused by a bone protrusion from the condylar fossa in a juvenile case[J]. Br J Neurosurg, 2020, 34(2):232-234. doi: 10.1080/02688697.2018.1435850 pmid: 29405773
[11]	Yang H, Zhong S, Hu Y, et al. Rotational vertebral artery occlusion in a patient with basilar invagination[J]. Br J Neurosurg, 2023, 37(4):650-652.
[12]	Eghbal K, Derakhshan N, Haghighat A. Ocular manifestation of a cervical spine injury: An adult case of traumatic atlantoaxial rotatory subluxation manifesting with nystagmus[J]. World Neurosurg, 2017, 101:811-817.
[13]	Saito K, Hirano M, Taoka T, et al. Artery-to-artery embolism with a mobile mural thrombus due to rotational vertebral artery occlusion[J]. J Neuroimaging, 2010, 20(3):284-286. doi: 10.1111/j.1552-6569.2008.00309.x pmid: 19021833
[14]	Cornelius JF, Slotty P, El KM, et al. Hemodynamic stroke: A rare pitfall in cranio cervical junction surgery[J]. J Craniovertebr Junction Spine, 2014, 5(3):122-124. doi: 10.4103/0974-8237.142306 pmid: 25336834
[15]	Missori P, Marruzzo D, Peschillo S, et al. Clinical remarks on acute post-traumatic atlanto-axial rotatory subluxation in pediatric-aged patients[J]. World Neurosurg, 2014, 82(5):e645-e648.
[16]	Eura N, Saito K, Shimizu H, et al. A thromboembolic mechanism in bow hunter's stroke: Importance of hemodynamic evaluation by ultrasonography during head rotation[J]. eNeurologicalSci, 2020, 20:100254.
[17]	Patankar AP. Vertebro-basilar stroke due to bow-hunter syndrome: An unusual presentation of rotatory atlanto-axial subluxation in a fourteen year old[J]. Br J Neurosurg, 2023, 37(4):808-810.
[18]	Pinol I, Ramirez M, Salo G, et al. Symptomatic vertebral artery stenosis secondary to cervical spondylolisthesis[J]. Spine (Phila Pa 1976), 2013, 38(23):e1503-e1505.
[19]	Wong SC, Chan TS, Chan CH, et al. Bow hunter's syndrome: A sinister cause of vertigo and syncope not to be missed[J]. Hong Kong Med J, 2020, 26(2):150-151.
[20]	Jost GF, Dailey AT. Bow hunter's syndrome revisited: 2 New cases and literature review of 124 cases[J]. Neurosurg Focus, 2015, 38(4):e7.
[21]	Wang S, Bi Y, Chen Y. Bilateral bow hunter syndrome associated with loss of cervical physiological curvature[J]. Am J Case Rep, 2024, 25: e942609.
[22]	Yamaguchi S, Horie N, Tsunoda K, et al. Bow hunter's stroke due to stretching of the vertebral artery fenestration: A case report[J]. NMC Case Rep J, 2015, 2(1):9-11. doi: 10.2176/nmccrj.2014-0075 pmid: 28663954
[23]	Motiei-Langroudi R, Griessenauer CJ, Alturki A, et al. Bow hunter's syndrome from a tortuous v1 segment vertebral artery treated with stent placement[J]. World Neurosurg, 2017, 98:811-878.
[24]	Johnson SA, Ducruet AF, Bellotte JB, et al. Rotational vertebral artery dissection secondary to anomalous entrance into transverse foramen[J]. World Neurosurg, 2017, 108:991-998.
[25]	Shimizu S, Yamada M, Takagi H, et al. Bow hunter's stroke associated with an aberrant course of the vertebral artery--case report[J]. Neurol Med Chir (Tokyo), 1999, 39(12):867-869.
[26]	Rendon R, Mannoia K, Reiman S, et al. Rotational vertebral artery occlusion secondary to completely extraosseous vertebral artery[J]. J Vasc Surg Cases Innov Tech, 2019, 5(1):14-17. doi: 10.1016/j.jvscit.2018.09.006 pmid: 30619984
[27]	Buch VP, Madsen PJ, Vaughan KA, et al. Rotational vertebrobasilar insufficiency due to compression of a persistent first intersegmental vertebral artery variant: Case report[J]. J Neurosurg Spine, 2017, 26(2):199-202.
[28]	Dabus G, Gerstle RJ, Parsons M, et al. Rotational vertebrobasilar insufficiency due to dynamic compression of the dominant vertebral artery by the thyroid cartilage and occlusion of the contralateral vertebral artery at C1-2 level[J]. J Neuroimaging, 2008, 18(2):184-187. doi: 10.1111/j.1552-6569.2007.00177.x pmid: 18298678
[29]	Sell JJ, Rael JR, Orrison WW. Rotational vertebrobasilar insufficiency as a component of thoracic outlet syndrome resulting in transient blindness. Case report[J]. J Neurosurg, 1994, 81(4):617-619. pmid: 7931599
[30]	Sarkar J, Wolfe SQ, Ching BH, et al. Bow hunter's syndrome causing vertebrobasilar insufficiency in a young man with neck muscle hypertrophy[J]. Ann Vasc Surg, 2014, 28(4):1031-1032.
[31]	Dadsetan MR, Skerhut HE. Rotational vertebrobasilar insufficiency secondary to vertebral artery occlusion from fibrous band of the longus coli muscle[J]. Neuroradiology, 1990, 32(6):514-515. pmid: 2287384
[32]	Karabacak M, Ozkara BB, Ozaydin B, et al. What you need to know about: Arterial cerebrovascular syndromes caused by static or dynamic musculoskeletal compression[J]. Br J Hosp Med (Lond), 2022, 83(3):1-9. doi: 10.12968/hmed.2021.0091 pmid: 35377211
[33]	Mori M, Yamahata H, Yamaguchi S, et al. Bow-hunter's syndrome due to left C7 schwannoma in a patient with bilateral absence of the posterior inferior cerebellar artery[J]. J Orthop Sci, 2019, 24(5):939-944. doi: S0949-2658(17)30087-8 pmid: 28456352
[34]	Haimoto S, Nishimura Y, Hara M, et al. Surgical treatment of rotational vertebral artery syndrome induced by spinal tumor: A case report and literature review[J]. NMC Case Rep J, 2017, 4(4):101-105. doi: 10.2176/nmccrj.cr.2016-0152 pmid: 29018650
[35]	Akar Z, Kafadar AM, Tanriover N, et al. Rotational compression of the vertebral artery at the point of dural penetration. Case report[J]. J Neurosurg, 2000, 93(2 Suppl):300-303. pmid: 11012064
[36]	Kitahara H, Takeda T, Akasaka K, et al. Bow hunter syndrome elicited by vertebral arterial occlusion after total arch replacement[J]. Interact Cardiovasc Thorac Surg, 2017, 24(5):806-808.
[37]	Dohzono S, Sasaoka R, Takamatsu K, et al. Bow hunter's syndrome after cervical laminoplasty in a patient with rheumatoid arthritis with bony ankylosis in the cervical spine: A case report[J]. Mod Rheumatol Case Rep, 2020, 4(1):11-15.
[38]	Kan P, Srivatsan A, Johnnson JN, et al. Rotational carotid insufficiency: An unusual cause of bow hunter's syndrome[J]. BMJ Case Rep, 2018, 2018.
[39]	Brinjikji W, Graffeo CS, Perry A, et al. Moving target: Transient rotational stenosis precipitating jugular bow hunter's syndrome[J]. J Neurointerv Surg, 2017, 9(7):e28.
[40]	Santirso D, Garami Z, Diaz O, et al. Ultrasound during neck rotation to reveal a case of positional occlusion of the internal carotid artery[J]. J Ultrasound, 2022, 25(2):297-300.
[41]	Enomoto N, Yagi K, Matsubara S, et al. Case report: Bow hunter's syndrome caused by compression of extracranially originated posterior inferior cerebellar artery[J]. Front Neurol, 2021, 12:756838.
[42]	Tokashiki N, Ikenouchi H, Miyamoto T, et al. Occult bow hunter's syndrome as a hidden cause of recurrent posterior inferior cerebellar artery infarction[J]. Acta Neurol Belg, 2023, 123(3):1169-1171. doi: 10.1007/s13760-023-02227-9 pmid: 36854934
[43]	Cornelius JF, George B, N'Dri OD, et al. Bow-hunter's syndrome caused by dynamic vertebral artery stenosis at the cranio-cervical junction--a management algorithm based on a systematic review and a clinical series[J]. Neurosurg Rev, 2012, 35(1):127-135, 135. doi: 10.1007/s10143-011-0343-4 pmid: 21789571
[44]	Kuether TA, Nesbit GM, Clark WM, et al. Rotational vertebral artery occlusion: A mechanism of vertebrobasilar insufficiency[J]. Neurosurgery, 1997, 41(2):427-432,432-433.
[45]	Lee CS, Lee HY, Yang TK. Rotational vertebral artery occlusion syndrome: Misnomers and classification[J]. Clin Neurol Neurosurg, 2015, 131:18-20.
[46]	Shi C, Wang L, Dou Y, et al. Dynamic CT angiography of the head and neck in the diagnosis of bow hunter's syndrome: A case report[J]. Radiol Case Rep, 2020, 15(11):2275-2277.
[47]	Kimihira L, Yoshimoto T, Ihara M. New diagnostic algorithm for detection of covert bow hunter's syndrome[J]. Int J Med Sci, 2021, 18(10):2162-2165. doi: 10.7150/ijms.56442 pmid: 33859523
[48]	Takafumi S, Hojo R, Tsuchiyama T, et al. A case report of bow hunter's syndrome with intravascular ultrasound showing changing significant severe stenosis of the left vertebral artery associated with turning left[J]. Eur Heart J Case Rep, 2024, 8(1):ytad639.
[49]	Velat GJ, Reavey-Cantwell JF, Ulm AJ, et al. Intraoperative dynamic angiography to detect resolution of bow hunter's syndrome: Technical case report[J]. Surg Neurol, 2006, 66(4):420-423, 423. pmid: 17015129
[50]	Nomura Y, Toi T, Ogawa Y, et al. Transitional nystagmus in a bow hunter's syndrome case report[J]. BMC Neurol, 2020, 20(1):435. doi: 10.1186/s12883-020-02009-3 pmid: 33256636
[51]	Schubert MC, Carter N, Lo SL. Case report: Bow hunter syndrome-one reason to add non-gravity dependent positional nystagmus testing to your clinical neuro-otologic exam[J]. Front Neurol, 2021, 12:814998.
[52]	Xue S, Shi H, Du X, et al. Bow hunter's syndrome combined with ipsilateral vertebral artery dissection/pseudoaneurysm: Case study and literature review[J]. Br J Neurosurg, 2023, 37(4):911-915.
